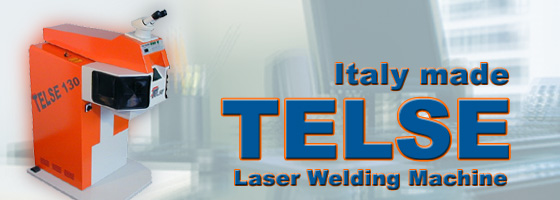

Italy
made Telse Laser Welding machine --- Model 130J (130 Joule)
To weld
all types of metals.Ideal for welding precious alloys, including
Silver- and Platinum-based alloys.Specially indicated for
heavy load working sessions and for those needing very accurate
LASER-welding works with a higher added value.
Model
130J Technical Data:
LASER-crystal: Nd:YAG @ 1064 nm
LASER-rod Size: 0.7 mm
Type of Generator: CCPS-PFC
Pulse-power: 0.5 ¡V 130 J
Avg. Pulse-power: 75 W
Peak Pulse-power: 5.2 kW
Pulse-power Duration: 0.5 ¡V 25 mS
Frequency of Repetition: 0.5 ¡V 20 Hz
LASER-spot Size: 0.3 ¡V 2.0 mm
Overall Dim. (WxDxH): 49 x 90 x 115 cm
Weight: 105 kg
Monofase / Single-ph,230 VAC ¡Ó10%, 50/60 Hz, 10 A Power-supply
|
