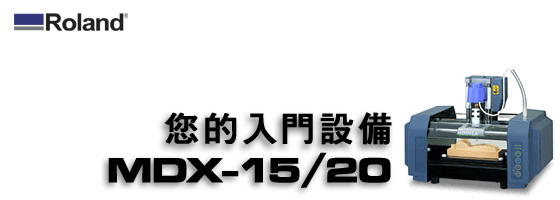

MDX-15/ 20 型號: (彷型雕刻
--- 可作掃瞄及數控雕刻之用)
這是一種桌式雕刻機，它備有掃瞄及數控雕刻功能。因它機身細少，容易使用及與市面上的三維軟件配合得很好，很多珠寶廠家用它作彷型雕刻的功序之上。它的價格便宜，有很多廠家也配備三台以上已生產之用。
|
 |
 |
| MDX-15
型號 |
MDX-20
型號 |
|
透過MDX-15/20型號所加工出來的工件。
加工物料一般以蠟、木材、首辦木材、膠料及鋁料為主。 |
 |
MDX-15/
20 型號配有即裝式轉軸，能使用家在最短時間內進行加工工作。 |
|
 |
MDX-15/
20 型號可配備之刀具能在蠟、木材、首辦木材、膠料及鋁料上直接加工，特別適用於設計及樣辦製造過程當中。 |
|
 |
MDX-15/
20 型號的探針式掃瞄系統，採用Roland Active Piezo Sensor (R.A.P.S.) 技術，能在大部份工件上作掃瞄之用。 |
|
 |
MDX-15/
20 型號採用數據方式掃瞄，用戶只要輸入馬達步進之距離 (0.05mm 至
5.00mm)，就能作全自動數據收集。
能在無人看管下，作24小時不停工作。 |
MDX-15/
20 型號隨機附送軟件
| Dr.
Picza
能將掃瞄後的數據作有限度的修改，也能將所得到的數據輸出成DXF, IGES, VRML, 或
Point Cloud data (ASCII). |
  |
| MODELA
Player
用家能輸入CAD檔案或是用掃瞄得來的數據，作數控型式的加工。其簡單易用及自動化介面，即使新手也能於一小時內學會數控篇程技巧，投入生產。 |
  |
機器規格
| |
MDX-20 |
MDX-15 |
| XY
table size |
220
mm (X) x 160 mm (Y) ( 8-5/8 in. x 6-1/4 in. ) |
170
mm (X) x 110 mm (Y) ( 6-11/16 in. x 4-5/16 in. ) |
|
Max.
operation area |
203.2
mm (X) x 152.4 mm (Y) x 60.5 mm (Z)(8 in. (X) x 6
in. (Y) x 2-3/8 in. (Z)) |
152.4
mm (X) x 101.6 mm (Y) x 60.5 mm (Z)(6 in. (X) x 4
in. (Y) x 2-3/8 in. (Z)) |
| Max.
table load weight |
1000
g (2.2 lb.) |
500
g (1.1 lb.) |
| Interface |
Serial
(RS-232C) |
| Control
keys |
STANDBY
key, VIEW key, TOOL-UP key, TOOL-DOWN key |
| LED |
SCANNING
MODE LED, MODELING MODE LED, VIEW LED |
| Power
Pack |
Exclusive
AC adapter (DC+19V 2.1 A) |
| Acoustic
noise level |
Standby
mode : under 35 dB (A) Operation mode (not cutting)
: under 70 dB (A) (According to ISO 7779) |
|
External
dimensions |
476.8
mm (W) x 381.6 mm (D) x 305 mm (H)(18-13/16 in. (W)
x 15-1/16 in. (D) x 12-1/16 in. (H)) |
426
mm (W) x 280 mm (D) x 305 mm (H)(16-13/16 in. (W)
x 11-1/16 in. (D) x 12-1/16 in. (H)) |
| Weight
(unit only) |
13.7
kg (30.2 lb.) |
9.6
kg (21.2 lb.) |
| Operation
temperature |
5
to 40 (41 - 104 F) |
| Operation
humidity |
35
to 80 % (no condensation) |
|
Accessories |
AC
adapter: 1, power code: 1, Roland Software Package
CD-ROM: 1, spindle unit: 1, sensor unit: 1, cap screw
M4x15 : 4, tool:1, set screw M3x3 : 2, double-sided
tape: 1, front cover: 1, hexagonal wrench (size :
3 mm) :1, hexagonal wrench (size : 1.5 mm): 1, positioning
pins: 3, clay: 1, MDX-20/15 user's manual: 1 |
| Modeling
Functions |
| Tool
chuck |
6
mm or 1/8 in. tool chuck included |
| Spindle
motor |
10W
(DC motor) |
| Software
resolution |
0.025
mm/step (0.000984 in./step) |
| Mechanical
resolution |
0.00625
mm/step (0.000246 in./step) |
| Revolution
speed |
6500
rpm |
| Feed
rate |
0.1
to 15 mm/sec. (0.00393 to 9/16 in./sec.) |
|
Acceptable
material |
Wood,
Plaster, Resin (modeling wax, styrenform), Chemical
wood, Aluminum (A5052 according to JIS),Brass |
| Acceptable
tool |
Endmil,
Drill |
| Scanning
Functions |
| Sensor |
Roland
Active Piezo Sensor (R.A.P.S.)Probe length 60 mm (2-5/16
in.), tip bulb diameter 0.08 mm (0.00315 in.) |
| Scanning
method |
Contacting,
mesh-point height-sensing |
| Scanning
pitch |
|
| (Dr.
PICZA) |
X/Y-axis
directions -- 0.05 to 5.00 mm (0.002 to 0.20 in.)
|
| Scanning
speed |
(settable
in steps of 0.05 mm (0.002 in.)) |
| Exportable
file formats |
Z-axis
direction -- 0.025 mm (0.000984 in.) |
| |
4E5
mm/sec. (1/8E/16 in./sec.) |
| |
DXF,
VRML, STL, 3DMF, IGES, |
| |
Grayscale,
Point Group and BMP |
|
